Optimizing Shade Alchemy and Compound Flow: The Grim Advantage of Modular Screw-and-Barrel Designs in Rubber Injection Molding

The Problem That Lurks in Every Run

Color banding, unmixed veins of compound, and sudden shifts in cure behavior appear like stains across production — small at first, then spreading into waste and rework. For operations molding liquid silicone rubber, these failures often trace back to an overlooked culprit: mismatched screw geometry and barrel modularity. The quiet truth is that process fidelity demands more than heat and pressure; it demands controlled transitions. This is why modern teams pair hands-on process control with robust hardware such as an lsr molding machine to keep hue and rheology from unraveling on the press.

Why Modular Screw-and-Barrel Designs Matter

A modular screw-and-barrel lets you tune shear, residence time, and backpressure without replacing the entire machine. That adaptability matters when switching grades of LSR or adjusting pigment loads. A change in screw flight depth alters melt homogeneity; a different barrel insert shifts thermal gradients. OEMs and lsr injection molding machine manufacturers who offer modular options provide the knobs process engineers need to stabilize color matching and compound transitions. Industry terms: screw-and-barrel, melt homogeneity, shot size.

Where the Process Breaks — and How to Stop It

Common failures are predictable: streaking from poor dispersive mixing, flash due to inconsistent shot size, and off-spec parts when mold temperature drifts. The fix is a layered approach. First, select a screw profile that balances distributive and dispersive mixing for the specific silicone hardness and pigment viscosity. Next, use barrel inserts to localize heating zones; this helps eliminate cold pockets that cause compound stratification. Finally, control the injection unit to stabilize shot size and injection speed. These steps tighten tolerances and reduce scrap — and they are concrete, measurable moves rather than vague remedies.

Practical Calibration and Troubleshooting

Begin with bench tests: run a repeatable shot series, measure color variance and cure time across the batch, then change only one hardware variable at a time. Track backpressure and melt temperature as you swap screw modules. Common mistakes include over-relying on pressure alone and ignoring shear rate effects on pigment dispersion — a false economy. Calibration should pair mechanical adjustment with simple data logging: a few runs recorded in CSV reveal trends that gut instinct misses. — It’s modest work with disproportionate payoff.

Alternatives, Comparisons, and When to Switch

Static mixers, co-injection, and in-line filament melters are alternatives. Static mixers can improve dispersion but add head pressure and limit throughput. Co-injection solves color changeovers at the mold but complicates tooling. Modular screw-and-barrel systems sit between these extremes: flexible, scalable, and well-suited for medium-to-high-mix runs. Choose by throughput, part complexity, and regulatory needs — especially for medical seals governed by FDA guidance and ISO 13485 frameworks, where traceability and repeatability are non-negotiable. Industry terms: injection unit, mold temperature, backpressure.

Human Errors, Hidden Costs, and a Short List of Best Fixes

Operators under time pressure often skip insert swaps or run higher injection speeds to hit cycle targets. This saves minutes but yields rejects that cost orders. The three practical fixes that reduce human error are simple: standardized changeover kits, clear module markings, and cross-training on why shear and residence time matter. These pragmatic controls lower dependency on individual memory and make quality less brittle.

Three Golden Rules for Selecting Hardware and Strategy

1) Match modulability to variability: Pick modular screw-and-barrel systems when your product mix changes more than twice per month. This yields faster changeovers and fewer tooling buys.

2) Quantify control: Require that chosen equipment yield measurable reductions in color variance and cycle-to-cycle shot size drift within 5% over a 24-hour run — concrete metrics that predict scrap and yield.

3) Vet supplier systems for service and traceability: Confirm spare-module availability, documented service response times, and compatibility with your quality standards (FDA/ISO). The right partner brings both parts and process knowledge to the floor.

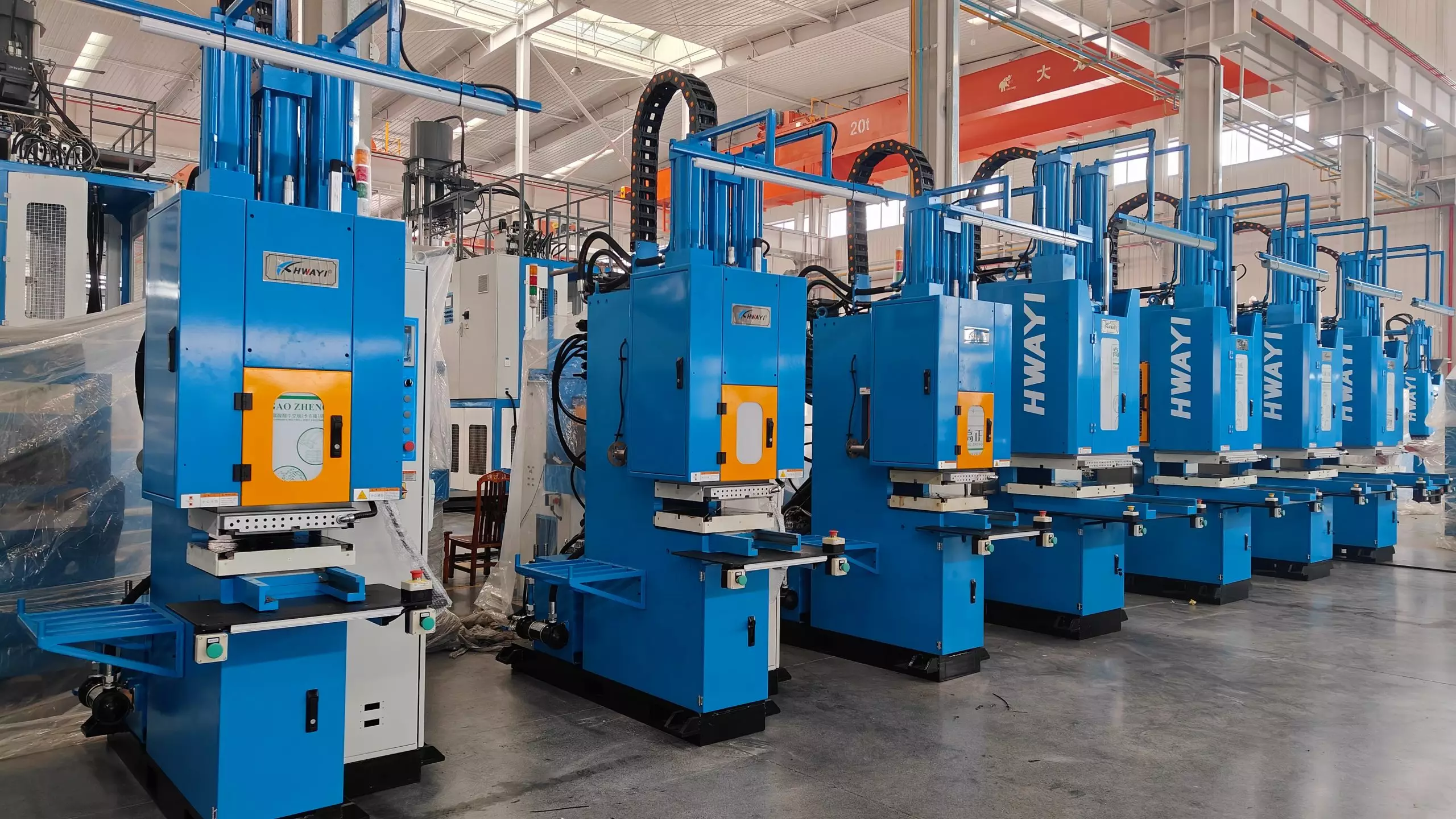

The sober value — less scrap, predictable color, and stable cure — arrives when modular design meets disciplined calibration, and companies like HWAYI provide the hardware and service that make that union practical. Fragment — dark, precise, necessary.
